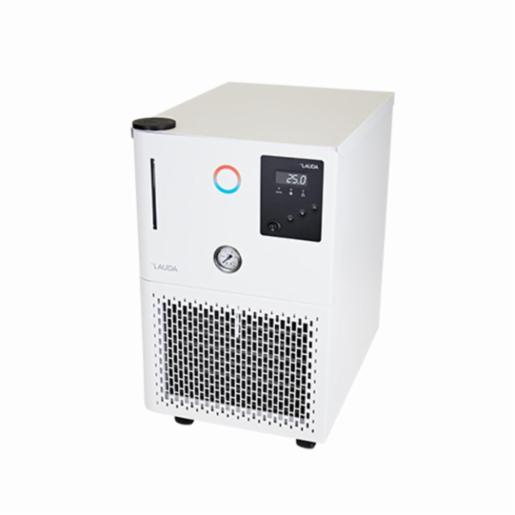

LAUDA Microcool MC 600Circulation chille 230 V; 50 Hz L001048

LAUDA Microcool MC 600 Circulation chille 230 V; 50 Hz Features: Circulation chiller 1-line LED display for display of actual or set temperature User-friendly menu guidance with simplest 3-key operation Fully electronic continuous controller Temperature protection for the pump windings, lighted level indication and low level alarm Magnetically coupled block pump RS 232 interface Auto-Start-Timer and Auto-Shut-Down function Filler opening on top, outlet connection on the backside Adjustable bypass for pressure limiting Cooling capacity adjustment by solenoid valve control including compressor on-off control Condenser cooling Air Operates with non flammable liquids (water,water/glycol) Technical Features (according to DIN 12876): Working temperature range: -10 ... 40 °C Ambient temperature range: 5 ... 40 °C Temperature stability: 0.5 ±K Pump Pressure max.: 1.3 bar Pump flow rate pressure max.: 35 L/min Filling volume min.: 4 L Filling volume max.: 8 L Overall dimensions (WxDxH): 350 x 480 x 595 mm Noise level: 57 dB(A) Net Weight: 50 kg Power consumption max.: 0.7 kW Power consumption: 4 A Power supply: 230 V; 50 Hz Power plug: Power cord with angled plug (CEE7/7) Cooling Capacity: 20 °C; Ethanol; 0.6 kW 10 °C; Ethanol; 0.5 kW 0 °C; Ethanol; 0.36 kW -10 °C; Ethanol; 0.15 kW
